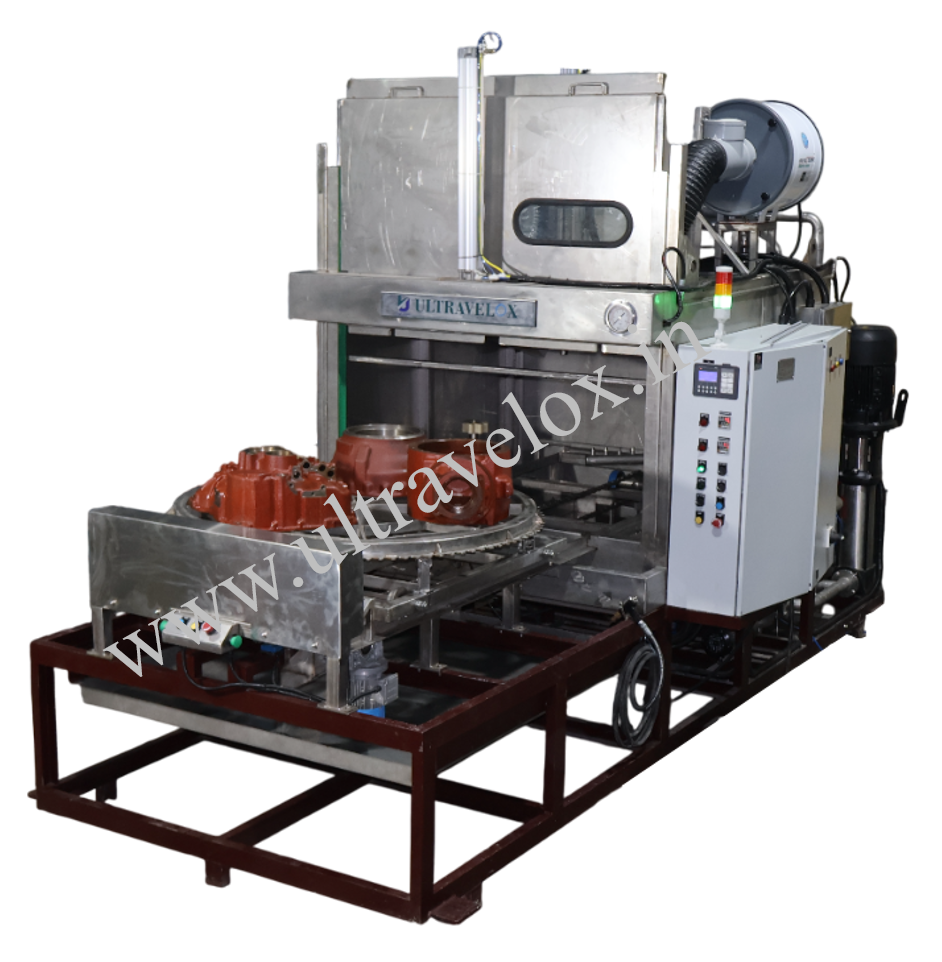

Front Loading Component Cleaning Machine
The Ultravelox Front Loaded Rotary Cabinet Washer designed for Heavy Duty component washing & Degreaser of large parts, machined bodies and batch type production with greater load capacities for handling larger parts than our top loading Roto Cabinet Washer models. Front loaded rotary cabinet washer efficiently cleans the `components’ kept on a trolley at the load / unload platform of the machine. Our Front Loaded Rotary Cabinet Washer excellent for railroad, re-manufacturing, mining, marine, energy and other heavy-duty industry cleaning applications. We ensure higher levels of component surface cleanliness are achieved during the design & process selection prior to manufacturing.
- Complete SS304 Construction.
- User friendly for handling heavier components by hoist or cranes.
- Perfectly fits into the cellular manufacturing layout
- Mechanical well designed leak proof Door no need for any seal replacing!
- Power spray swing nozzle for high effective cleaning.
- Automatic Pneumatic Door opening & Closing.
- Well-designed Rotary table washing machines Wash Chamber with Mechanical Door Seal ~ No rubber seals to replace or leak!
- High pressure vertical / horizontal pumps.
- High pressure centrifugal blower with Electric hot heater for component drying.
- Slow speed Basket Rotation.
- Low Water Shut-Off ~ Protect your heat elements from low water conditions
- Stainless Steel V-Jet Nozzles ~ Durability and precise 360 degree cleaning coverage
- Rotary Table Component Cleaning Machine is provided with PLC Controlled Industrial Control Panel
- Gravity Filter to keeps tanks free of larger debris
- Mist collector for Exhaust systems.
- Rotary type component cleaning machines wash tank can be also provided with Oil separator / oil Skimmer for effective removal of oil from the tank in high volume.
- Washable Filtration system for reuse of aqueous solution.
- Our Machine performance, Reliability & quality superior than component cleaning machine manufacturers.
- Filtration range of 150 micron to 5 micron filtration can be provided with online & offline filtration.
Our technical experts and design team can customize the Rotary table type component cleaning machine for enhanced quality clean benefits, handling, and productivity. The design of custom systems is possible with a Rotary table that is as large as needed and with weight capacities that match.
- Front Loading Rotary Table Type Spray Washers Dynamic range of basket sizes – 750 mm, 1000mm, 1500mm, 2000mm & 2500mm diameter.
- Process Pressure wash / Rinse.
- PLC & HMI Controlled Panel.
- Wash solution temp varies from 50 to 65 degree.
- Loading Height @ 950mm.
- Load carrying capacity of our Spray Cabinet Parts Washer 150 kg to 3500 kg
- Wash solution tank capacity vary from 300 to 3000 Litre depends upon the Spray Cabinet Parts Washer design requirement of the component
- Roto Cabinet Washers Wash pressure varies from 4 to 25 bar.
- Front Loading Spray Washer Rotary table are driven by sprocket arrangement for reliable excellent performance.
- Vertical Pump Systems – the ultimate in pump reliability
- PLC Controlled Electric panel.
- Industrial Control Panel with international wiring standards for numbering, sizing, color coding, and overload protection.
- Mist collector.
- Oil separator.
- Duplex Filtration system.
- Two tank Filtration.
- Paper band filtration.
- Magnetic separator.
- Both side Loading & Unloading option.
- Transmission component washing
- Diesel Engine Degreaser
- Large Parts industrial degreaser
- Military Applications Degreaser
- Aircraft Wheel Parts Washer degreaser.
- Aircraft Brake Parts cleaner machine
- Aircraft Bearing Parts Washer
- Diesel Engine component washing machine
- Electric Motor Parts Washer
- Rail Bearing Parts Washer
- Locomotive Crankcase Washer
- Machined casting cleaning machine.
- Steel Mill Bearing Parts cleaner machine
- Wind Turbine Gearbox Parts Washer
